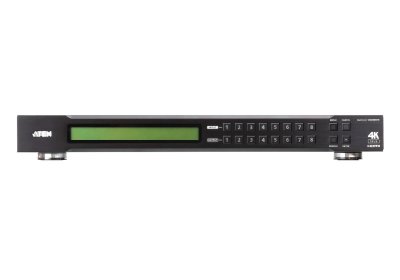

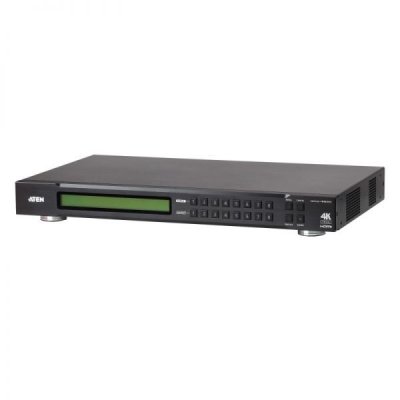

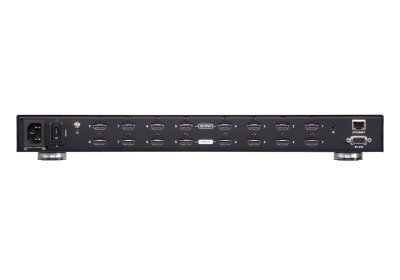

ATEN VM0808HB

ATEN VM0808HB | 8x8 True 4K HDMI Matrix Switch Series that Offers an Easy and Affordable Way to Route any of 8 HDMI Video Sources
ATENs VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

The intuitive GUI design of the VM0808HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0808HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.



FEATURES

• Connects any of 8 HDMI sources to any of 8 HDMI displays
• Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
• Supports HDR10+
• Multiple Control Methods system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
• EDID Expert selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
• Signaling rates up to 6 Gbits for flawless true 4K output
• Supports Dolby True HD and DTS HD Master audio
• HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
• Supports Consumer Electronics Control (CEC)
• Power-on Detection switches to the next powered-on source when one source is powered off
• ESD protection for HDMI
• Supports ATENs LockPro HDMI cable lock for secure HDMI cable connections
• Firmware upgradeable
• Rack mountable (1U design)
