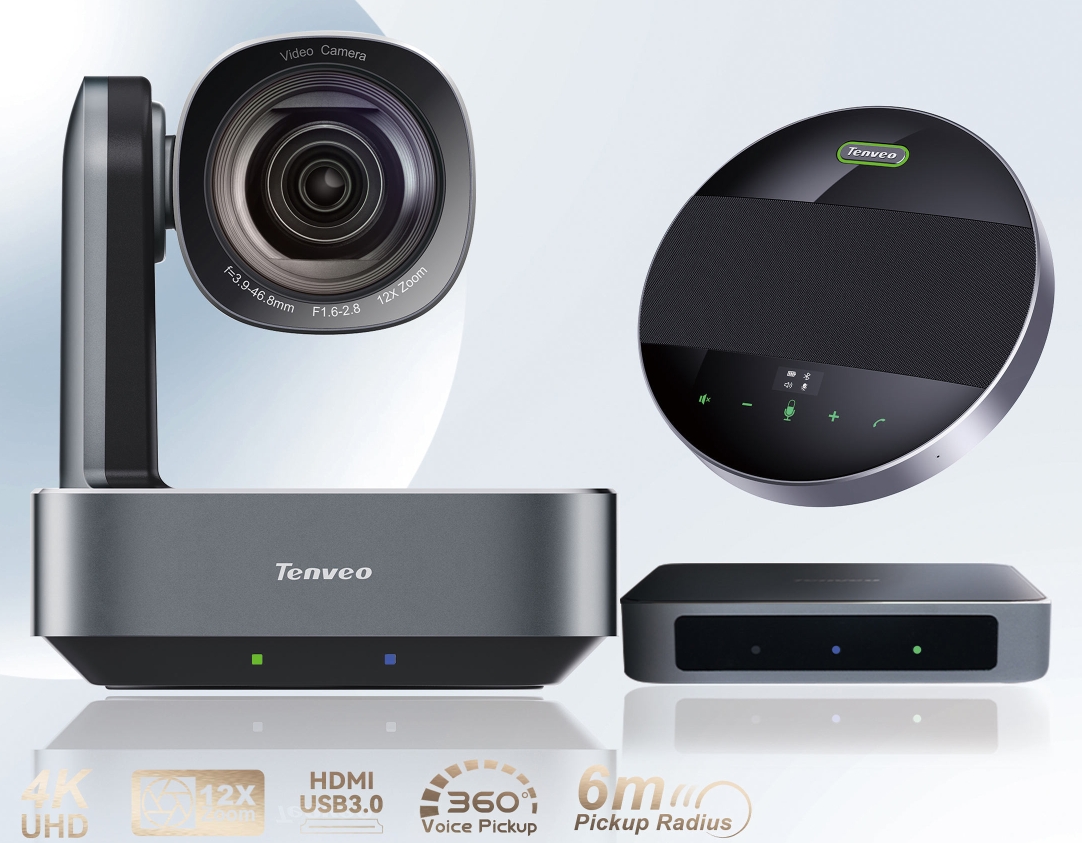

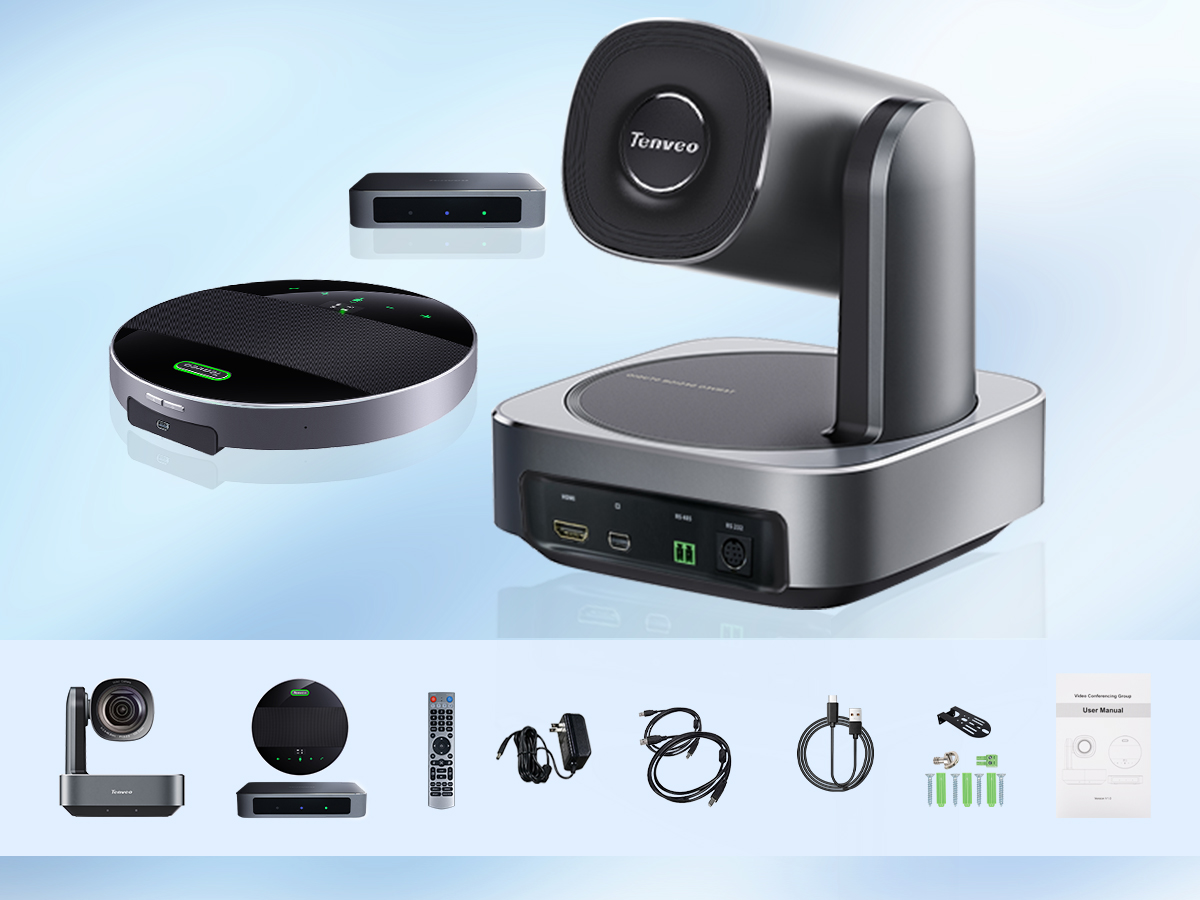

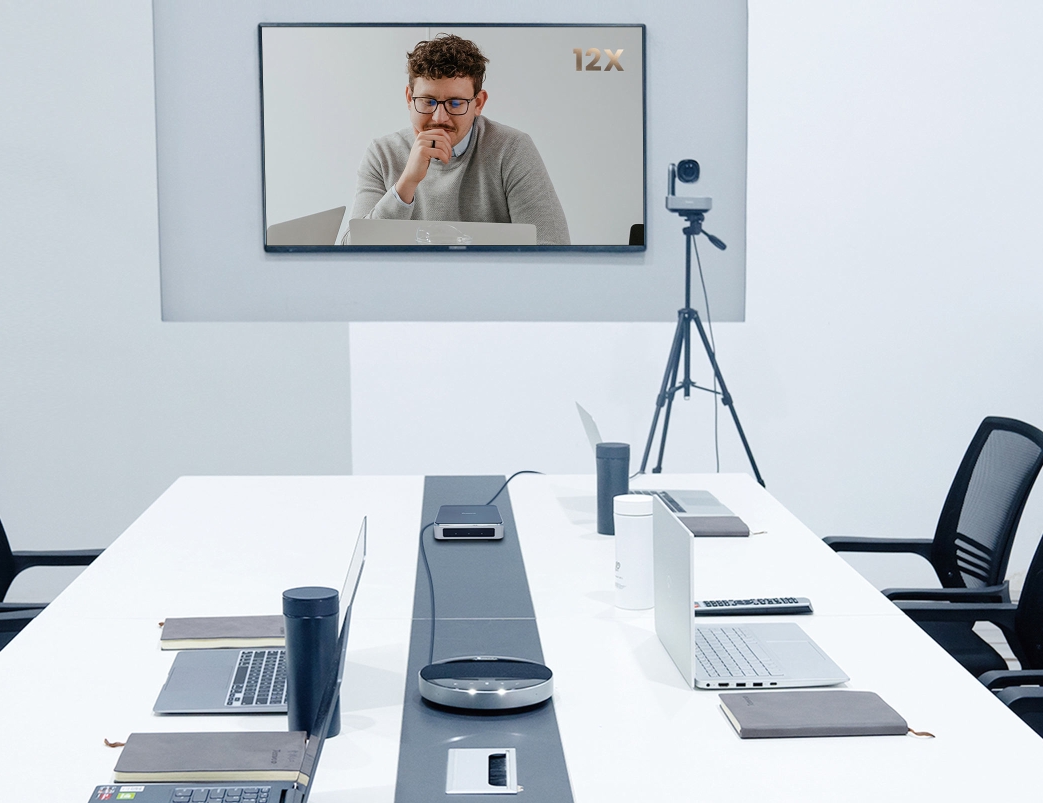

The Tenveo 4K All-in-One video and audio conference group is the best choice for medium to large conferences. The Conference system includes a 4K Ultra HD 12x Optical Zoom PTZ Camera, a 360° Voice Pickup Bluetooth speakerphone and a hub. The 4K enterprise-quality video conferencing system takes anytime, anywhere video collaboration to a new level.
The Sony CMOS sensor delivers 4K Ultra HD Image and this system ensures all the participants can be heard and seen clearly. No extra effort nor resource is needed to build a conference system. You could use this camera in different scenarios with full adjustments of image modes. The 12x Optical Zoom lens ensures every subtle facial expression can be captured during the ptz rotation process without any image distortion.

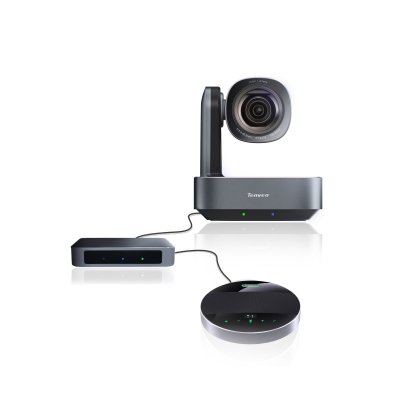

The VLoop camera is compatible with multiple devices through DP to Hub, HDMI to your TV, and RS232/RS485 to the keyboard controller. The HUB has 4 interfaces. 2*DP Ports connect to camera and speakerphone, a USB-C connects to your PC, and a power hole for power supply.

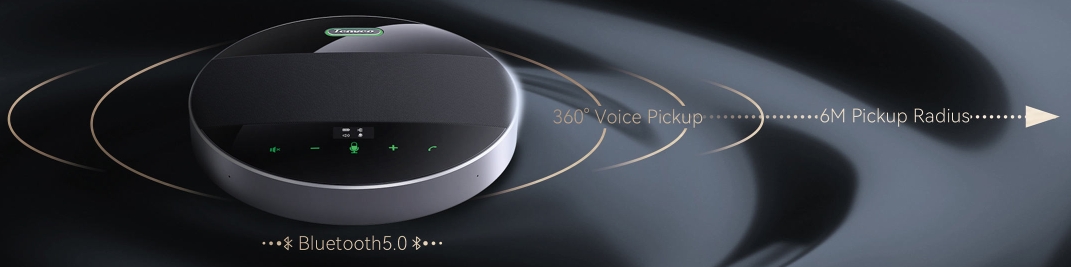

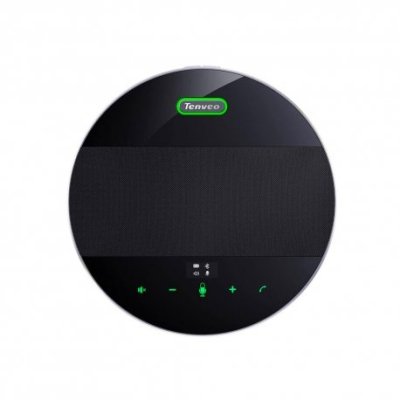

Equipped with intelligent environmental noise-reduction and echo cancellation technology, and smart voice enhancement, the speakerphone could deliver a solid and superior sound clarity. The built-in 360° omnidirectional microphones with a pick up radius of 6m(20ft), ensures each participant can be heard clearly. It is easy to get the meeting started by using the OLED touch panel. With intelligent voice recognition, the LED indicator light can clearly recognize the direction of speaker.

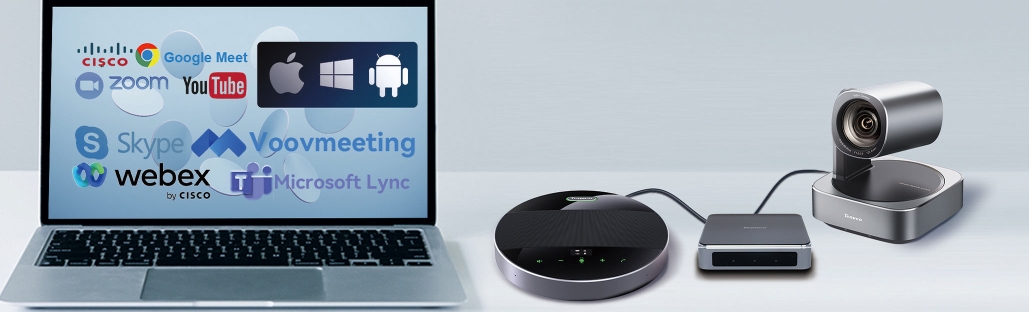

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), VooV Meeting, CISCO WebEx and other conferencing software. Make sure your internet upload/download speeds exceed at least 2M bit per second(>256KB/s). System Requirements: Windows 7 or higher, Mac OS X 10. 7 or higher, Linux. (Required to support UVC)
The system could be widely used in video conferencing, church live streaming, remote meetings, distance education, government and telemedicine, etc.
Model | TEVO-VLGroup-12U |
Parameters of the camera | |
CAMERA | USB3.0/HDM1 PTZ camera with 12x zoom |
Image Sensor | SONY IMX415 1/2.8'' CMOS |
Effective pixels | 8.29MP, 16:9 |
Lens | f=3.9-46.8mm |
Aperture | F1.6-F9.6 |
Video Format | HDMI(4KP@30/25fps, 1080P@60/50/30/25fps, 720P@60/50/30/25fps), USB3.0(3840*2160P@30fps, 2560*1440P@30fps, 1920*1080P@30fps, 1280*720P@30fps, 640*480P@30fps, 320*240P@30fps)YUV2/NV12/H.264/H.265/MJPG |
Optical zoom | 12x optical zoom |
Horizontal Angle | 70.82°(W)-6.48°(T) |
Vertical Angle | 47.72°(W)-73.66°(T) |
Diagonal Angle | 78.58°(W)-7.42°(T) |
Video interfaces | HDMI, Type-C, Ethernet |
Backlight Compensation | Support |
Pan/Tilt Rotation | ±175°, -90°~+90° |
Preset Number | 255 presets by Pelco D, 32 presets by Pelco-P, 7 presets by Visca(10 presets by remote controller) |
Focus | Auto/Manual |
Parameter of the speakerphone | |
Pick up range | 6 meters |
Bluetooth | BT5.0 |
Battery | 8000mAH(Built-in lithium battery): Music time (up to 14 hours ); Battery life(call) up to 27 hours; Fastest charging time: 3 hours Regularly charging time: 6 hours (Support PD2.0/ 3.0 charging) |
Meeting Room Size | 15-30m, Up to 15 attendees |
Mics | 4x Digital Silicon Mics Array |
Microphone Type | Omni-directional (360 degree pickup range) |
Microphone Sensitivity | -27dBFS |
Noise Reduction | Yes |
Full Duplex Audio | Yes |
AEC | Yes |
Frequency Range | 100Hz to 22kHz |
Speaker | 5W/120dB |
Interface | 1 x Type-C, 1 x 3.5mm audio port |
System Requirements | Windows 7/8/10 or above,MacOS 10.7 or above, Chrome OS V29.01547 or above |
Application Support | Software: Skype. FaceTime, Zoom, Microsoft Teams,Hangouts OBS and Xsplit, etc. |
Warranty | 3 years |
