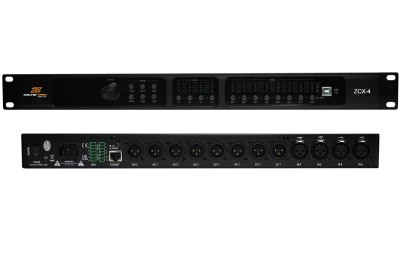

Zoundtrak ZCX 4

Zoundtrak  ZCX - 4  Crossover
Characteristic
✅ Adopt ADI SHARC 21489  400 MHz 32/40-bit floating-point DSP with 96 KHz Sampling Rate; Use ELNA electrolytic and other world-famous audio dedicated devices to delivery a pleasantt sound;
✅ Bulti-in sine, white noise-splitting singal generator, and could be used as a test signal;
✅ Input with 3-band dynamic EQ to improve the audio performance;
✅ Channels link and channels copy function to improve the engineer's effciency;
✅ Full port RF protection to protect the safe and reliable operation of the equipment;
✅ Support for multiple connection mode; USB , TCP/IP , RS232 , RS485 , and GPIO port , open protocol for third-party control;
✅ Support multiple machines networking and joint debugging.
✅ Support mobile APP wireless control.
✅ FIR Filter is an optionnal on Output Crossover.

*เช็ค Stock และราคากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง

Specification
-  Input / Output  :  4 in 8 out

- THD+N  :  <0.003% @ 1 KHz

-  S/N  :  >112 dBA (A-Weighted)

-  Frequency response  :  +0.3 dB (20 Hz - 20 KHz)

-  AD & DA Converters  :  24 bit - 96 KHz

-  Max Input / Output Level  :  + 20 dB

-  Parametric Equalization  :  Input 10 band , Output 10 band

-  Filter Type  :  FIR / PEQ / Low-Shelf / Hi-Shelf / ALL PASS
