YAMAHA TF5

YAMAHA TF5
Digital mixer 32 Channels , 48 input

 *เช็ค Stock และราคากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง

Yamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide.
The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user’s intuition even freer rein. TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix.

TouchFlow Operation™ – Smooth, Natural Control Flow

Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic™ interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.

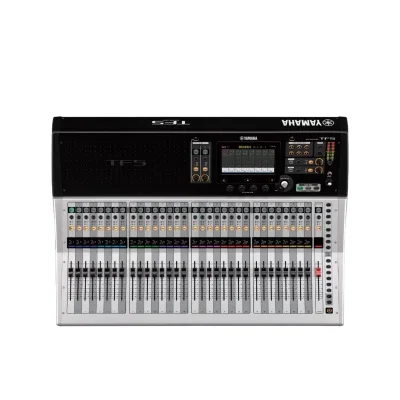

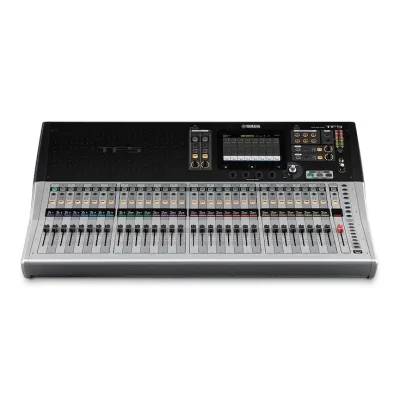

TF5 Digital Mixing Console

High input capacity and fader count makes this powerful console ideal for larger applications.

• 33 motor faders (32 channels + 1 master)

• 48 input mixing channels (40 mono + 2 stereo + 2 return)

• 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses

• 8 DCA groups with Roll-out

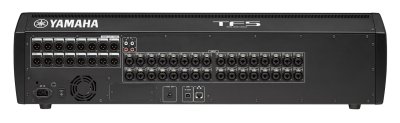

• 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs

• 16 analog XLR outputs

• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device

• 8 Effects and 10 GEQ

• 1 expansion slot for NY64-D audio interface card
