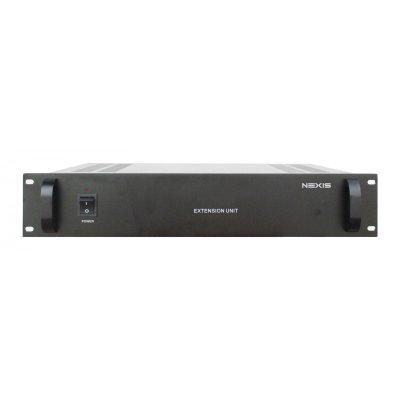

If the microphone quantity more than 64pcs in one system, then the system need extension power supply unit to support the conference main unit supply the power to microphone unit. Each extension power supply unit can support 64 units microphone. And one system can support up to 256 unit microphone with the extension power unit.

Technical Parameters

• Power supply: 220VAC 50/60Hz Output Voltage: 24VDC
• Maximum power consumption:350W
• Connection:8P-DlN cable

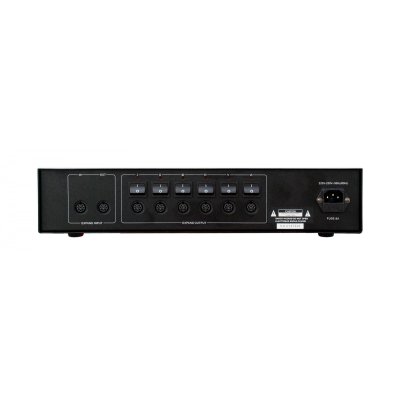

• System outlets: 8P-DlN x6
• Dimension:483x88x360mm,2 U rack 19
• N.W: 6kg

Connection Diagram
