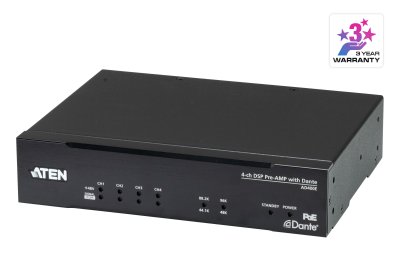

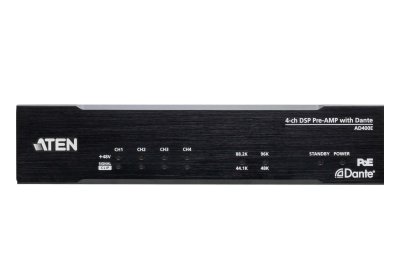

ATEN AD400E

4-ch Mic/Line Pre-AMP with DSP and Dante Output

 รับประกัน 3 ปีเต็ม

 *เช็ค Stock และราคากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง

เช็ค Stock และราคากับเจ้าหน้าที่ :  Audiovideomed     Audiovideomed

Features

• Dante AoIP technology - replaces heavy, costly analog audio cables with cost-effective, easy-to-manage Cat cables
• AES67 compliant
• Converts 4 channels of balanced / unbalanced microphone / line-level audio signals into Dante packets
• Supports 24 bit and offers sampling rate options of 44.1k, 48k, 88.2k, and 96 kHz
• Euroblock connectors come with the package for analog input connection
• Professional preamp circuitry - delivers a wide dynamic range and great Signal-to-Noise Ratio (SNR)
• Phantom power (+48V) - can be enabled on any individual input, supporting condenser microphones while causing little signal distortion
• Parallel Compression - 4 additional channels serve as side chain inputs, combining an original signal with a compressed copy to polish the sound
• Built-in DSP - allows 24 presets and quick setting adjustment through PC-based app Audio Wizard / ATEN VK control system via LAN / RS-232
• Selectable automatic Standby Mode - the unit enters Standby Mode automatically when the signal level runs lower than -50 / -60 / -70 dBu for a selected duration (10 / 30 / 60 minutes)
• Supports PoE for redundancy operation and eliminating the need for additional wiring installations
• Supports Dante Daisy Chaining for simplifying system infrastructure wiring
• Compact half-rack size chassis - flexible installation inside racks and easy placement under desks or on flat surfaces
• Works with ATEN Pro Audio models to realize distributed DSP systems

Diagram

Package content

• 1 x AD400E 4-ch Mic/Line Pre-AMP with DSP and Dante Output
• 1 x rack mount / surface mount kit
• 1 x foot pad set (4 pcs)
• 5 x 3-pin Euroblocks
• 1 x user instructions
