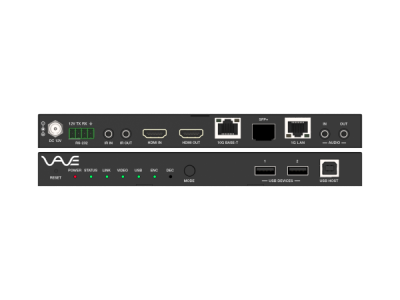

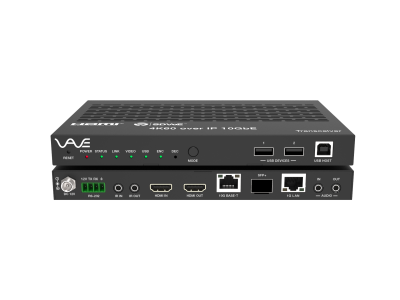

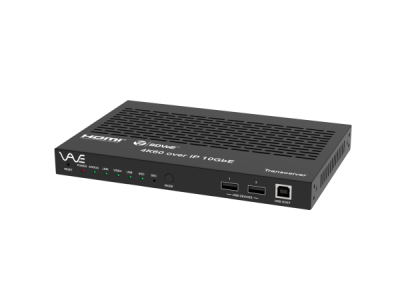

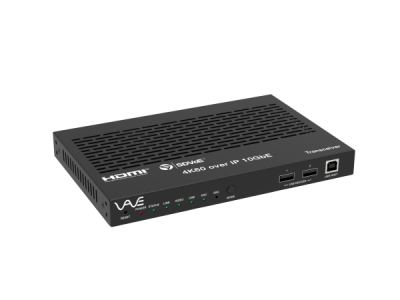

VAVE AVIP-SDVOE-10G-TRX

This transceiver is an SDVoE-Compliant, All-In-One AV over IP solution that provides highest-quality, uncompressed 4K and zero-frame latency audio/video extension over a standard 10G Copper or Fiber Network Switch with instant switching, Video Wall and Multi View functions. It can transfer advanced HDMI content such as HDR (high dynamic range), full color-depth and multichannel HD Bitstream audio. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control. Its built-in Secondary Stream supports a high quality, bandwidth configurable H.264/H.265 compression video stream for portable device preview purpose. Multiple control and data signals can be transmitted along with audio and video signals simultaneously, including bi-directional IR, RS-232, USB KVM, CEC and 1G Ethernet.

Feature :

• HDMI 2.0b and HDCP 2.2 compliant
• Support video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth
• Flexible transceiver design (Encoder, Decoder, Copper and Fiber portswithin a single box)
• Encoder or Decoder mode can be set via Button or API
• Automatic detection of Fiber and Copper ports (priority can be set)
• Encoder supports HDMI Loop out
• Support HDR10, Dolby Vision, HLG, 3D as well
• Support full HDMI audio formats, up to Dolby TrueHD, Dolby Atmos and DTS-HD, DTS:X
• Support Zero-Frame latency operating mode
• Support signal extension, seamless switching, Matrix, Video Wall up to 9×9 and Multi View up to 25 windows
• Flexible audio routes control including bidirectional analog audio transmissions between Encoder and Decoder
• Built-in H.264/H.265 Secondary Stream (SS) for preview
• Support Secondary Stream VLAN tagging and parameters configuration
• Support bi-directional IR and RS-232 control signal pass-through
• Support USB2.0 (KVM), CEC routing control
• Standard POE supported (802.3at PD device)
• 10G managed network switch
