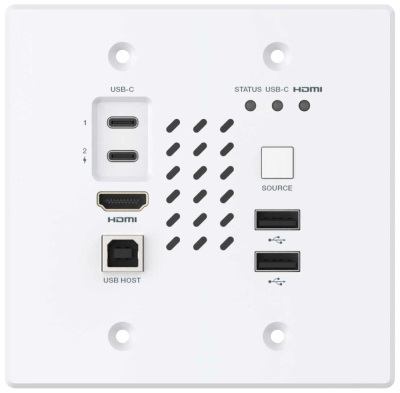

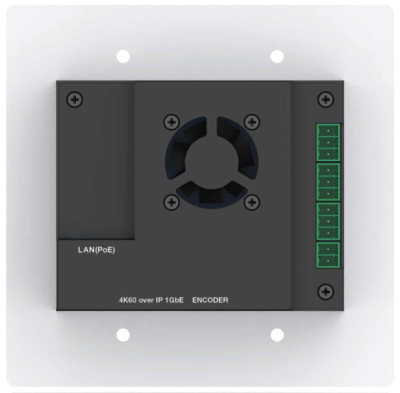

VAVE AVIP-J1G-EN-WP

This 4K60 AV over IP 1GbE Encoder (Wall-plate) is based on JPEG2000 technology, and uses ASPEED AST1530 for image codec and low-latency KVM applications. It features HDMI and USB-C dual input, with a video resolution of up to 4K60 4:4:4. This product supports audio embedding and de-embedding function, as well as USB 2.0/KVM/Camera, 1G Ethernet, bi- directional RS-232 (pass-through & Guest mode) and PoE function. Guest mode controls of RS-232 and CEC are supported. Dante AV-A mode is supported if the product is license activated.

Built-in MJPEG Sub stream which supports plenty API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content.

The system is based on Linux for software development, provides flexible control methods, and can realize intelligent networking based on Gigabit Ethernet Switch.

Feature :

• HDCP 2.2 and DP 1.2 compliant
• Support 18Gbps video bandwidth
• Input and output video resolution is up to 4K60 4:4:4, as specified in HDMI 2.0b
• Signal transmission distance can be extended up to 328ft/100m via CAT6/6A/7 cable
• Transmit video, analog audio, RS-232, CEC and USB signal over
• Ethernet
• Support USB 2.0 and KVM function
• US 2-Gang wall-plate
• With HDMI and USB-C dual inputs, supporting auto switching (switch to the corresponding signal input channel automatically when the signal source is connected and detected) and manual switching modes
• The USB-C 1 port supports video/audio/USB data transmission and power charging to USB-C source device by USB-C adapter connected to the USB-C 2 port
• Audio embedding and de-embedding are supported
• Dante AV-A mode is supported if license activated
• Support unicast and multicast functions
• Support point-to-point, video matrix and video wall functions (video wall supports up to 9×9)
• Intelligent video wall class management
• Built-in MJPEG Sub stream for video real-time preview on portable devices
• Support 1G Ethernet Switch, router and hub devices transmission
• Standard PoE (802.3at PD device) or local 12V power supply
• Built-in web page configuration and control, Telnet and SSH as well
• Support HDR10, Dolby Vision, HLG bypass
• Audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X
• Flexible control via Web GUI/TCP/RS-232 and third-party central control
• Smart networking design for easy and flexible installation
