VAVE EX-HDBT-40-WP-USBC

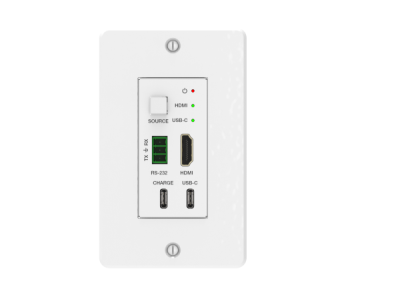

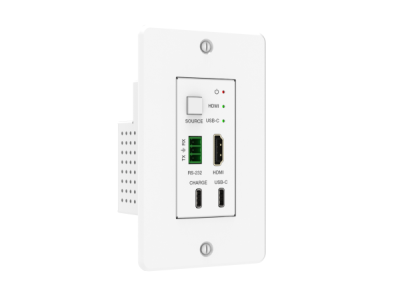

The wall plate is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K@50/60Hz 4:4:4. It supports bidirectional RS-232 pass-through, and the RS-232 control signal can be transmitted up to 131ft / 40m. The product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.

Feature :

• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
• HDMI input supports 18Gbps video bandwidth; USB-C input supports 5.4Gbps video bandwidth
• Video resolution up to 4K2K@50/60Hz 4:4:4
• HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P@60 or 131ft / 40mfor 4K@60 via a single CAT6/6a/7 cable
• Support 3D, HDR10 and Dolby Vision
• HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTSHigh Res, DTS-HD Master Audio, DSD
• Support HDMI and USB-C input
• With USB-C charging port
• US one-gang enclosure for Decora-style wall plate openings
• Input signal selection supports automatic mode and manual mode
• Support POE function (only from Receiver to Transmitter)
• Available in white or black coating
