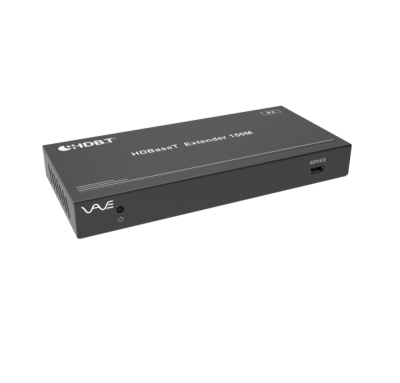

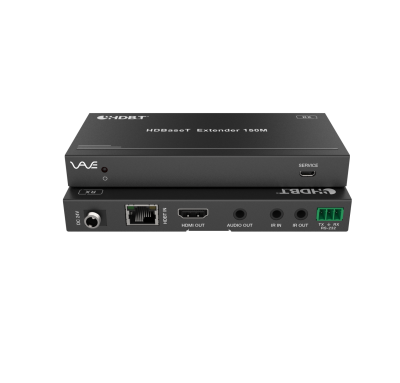

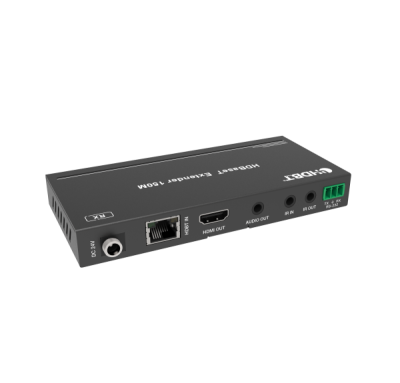

VAVE EX-HDBT-120A

This 18Gbps HDMI Extender extends high-definition video and audio signals, RS-232, and bi-directional IR up to 492ft (150 meters) using a single CAT cable. It supports resolutions up to 4K@60Hz 4:4:4, 18Gbps bandwidth, and HDCP 2.2. The extender includes an HDMI loop-out port and supports de-embedded audio for L/R audio output. Additionally, it features two-way IR pass-through for controlling both the source and display devices. The extender consists of two units: the transmitter, which captures the HDMI input signal and transmits it over a cost-effective Cat5e/6 cable while also handling IR control signals, and the receiver, which receives the HDMI signal and transmits IR control signals. This HDMI extender provides a convenient solution for extending HDMI signals over long distances via a single Cat5e/6 cable, making it ideal for a wide range of applications.

Feature :

• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Support 18Gbps video bandwidth
• The maximum extended transmission distance via a single Cat5e/6 cable:
• 394ft / 120 meters for 4K2K signal;
• 492ft / 150 meters for 1080P signal
• Support one HDMI loop output on the transmitter
• De-embeded audio to analog stereo output on receive
• With bi-directional IR, RS-232 and CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG function supported
• Support PoC (Power over Cable) function
• Compact design for easy and flexible installation
