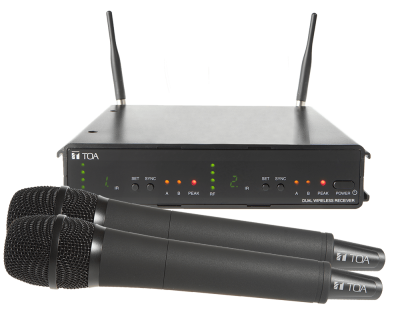

| Product Composition | Handheld wireless microphone x 2 Receiver x 1 |
|---|---|
| Frequency Range | 694 - 806 MHz (*1), UHF |
| Channel Selectable | Up to 16 channels (depending on region) |
| Tunable Frequencies | 25 kHz Steps |
| Pilot Tone | 32.768 kHz |
| Total Harmonic Distortion | <1% @ 1kHz |
| Function | IR sync, Channel scan, Battery indicator |
| Accessory | AC adapter x 1 Microphone holder x 2 |
Wireless Microphone
| Microphone Element | Dynamic with cardioid pattern |
|---|---|
| RF Carrier Power | 10 mW |
| Audio Frequency Response | 80 - 15,000 Hz |
| Audio Input Level | 140 dB SPL (Maximum) |
| Modulation System | PLL synthesizer |
| Battery | 1 AA size alkaline battery, 1.5V |
| Battery Life | Approx. 10 hours |
| Indicator | Battery Status LED, 7 Segments LED |
| Finish | Resin, coating |
| Dimensions | Approx. 250 x 50 mm |
| Weight | Approx. 245 g (with battery) |

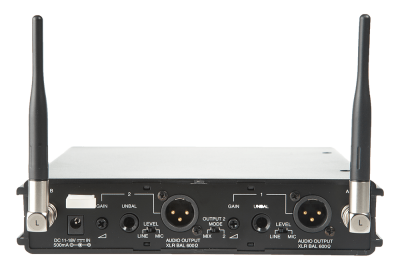

Dual Wireless Receiver
| Diversity Reception | AC mains (supplied AC-DC adapter must be used) |
|---|---|
| Sensitivity | 10uV at 45dBA S/N |
| Squelch (SQ) | Tone SQ, Carrier SQ and Noise SQ |
| Audio Frequency Response | 50 - 15,000Hz |
| Audio Output Level (Maximum) | Balanced (XLR socket): 16dBu Unbalanced (1/4" jack socket): 10dBu |
| Power Supply | 11-18 VDC 500mA |
| Dimensions | 210 (W) × 44 (H) × 202 (D) mm (excluding antenna) |
| Weight | 720 g |
| Option | Mounting bracket kit: MB-WT3 (for rack mounting one Dual Wireless Receiver) MB-WT4 (for rach mounting two Dual Wireless Receiver) |
(*1)
| Band | Frequency |
| A | 694 - 703 MHz, UHF |
| B | 748 - 758 MHz, UHF |
| C | 803 - 806 MHz, UHF |
