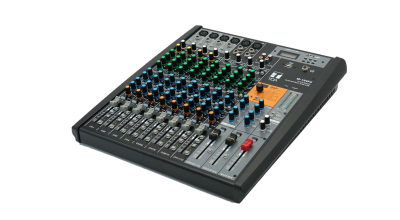

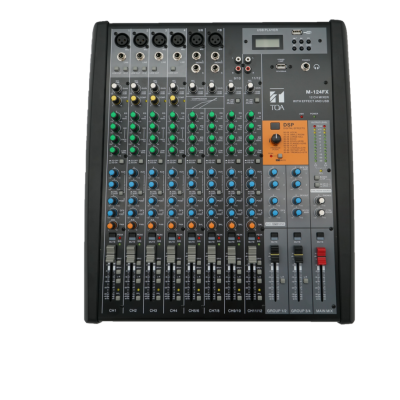

TOA M-124FX

Power source

100 - 240 V AC, 50 / 60 Hz

Power / current consumption

30W

Frequency response

20 Hz - 20 kHz

Operating temperature

0°C - 40°C (32°F - 104°F)

Finish

Steel plate, black

Dimensions

388.1 x 433.2 x 89.4 mm (W x H x D)

Weight

5.5 kg

S/N ratio

100 dB(A) (A weighted)

Indicator

Power (green) x1, +48V (red) x1, mute (red) x11, signal (green) x8, peak (red) x8, Output level (green) x18, (yellow) x4, (red) x2, PFL (yellow) x9, DFX mute (red) x1, compressor (yellow) x4

Crosstalk

90 dB

Inputs

MIC input 1-8: -50dBu, 1.8 kΩ, electronic balanced, female XLR connector

LINE input 1-4: -30dBu, 10 kΩ, electronic balanced, TRS phone-jack

LINE input 5-8: -30 dBu, 10 kΩ, stereo pair, electronic balanced, TRS phone-jack

LINE input 9-12: -30 dBu, 10 kΩ, stereo pair, unbalanced, RCA connector

MAIN INSERT: 0 dBu, 10 kΩ, stereo pair, unbalanced, TRS phone-jack

USB input: Audio formats: MP3, Format: FAT16, FAT32, USB(A) connector

PC input: -30 dBu, USB(B) connector

Outputs

MAIN MIX OUTPUT: 0 dBu, 120 Ω, stereo pair, electronic balanced, male XLR connector/TRS phone-jack

MAIN INSERT: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack

DFX OUT: 0 dBu, 120 Ω, stereo pair unbalanced, TRS phone-jack

CTRL ROOM: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack

GROUP OUT 1-4: 0 dBu, 120Ω, stereo pair, unbalanced, TRS phone-jack

AUX SEND 1-4: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack

Equalizer / Filter

Channel 1-4: ±15dB at 80Hz, ±12dB at 100Hz-8kHz, ±15dB at 12kHz

Channel 5-12: ±12dB at 80Hz, ±15dB at 500Hz, ±15 at 8kHz, ±12dB at 12kHz

Compressor

0 - 10dB
