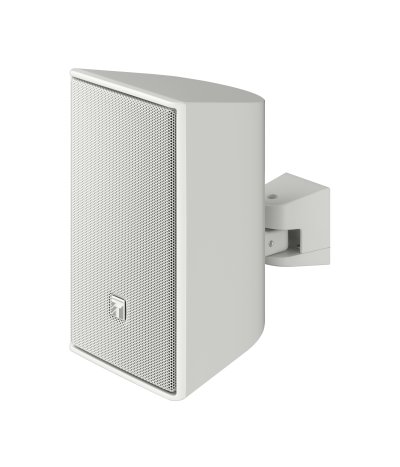

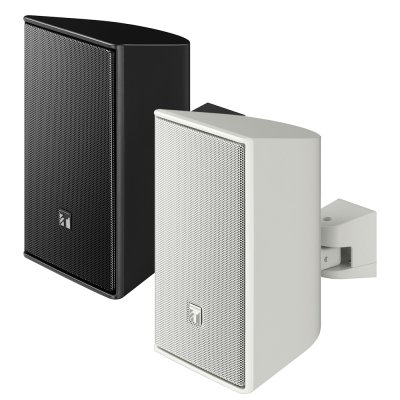

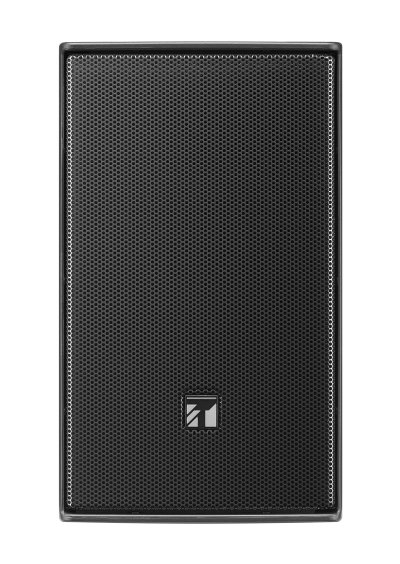

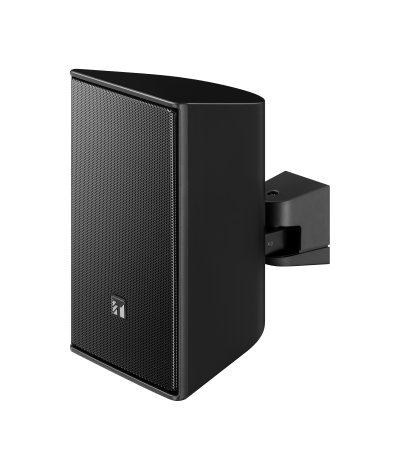

TOA F-03WT / BT

Enclosure

Bass-reflex type

Power Handling Capacity (*1)

Rated noise power: 30 W (8Ω) Continuous program: 60 W (8Ω)

Rated Input

15 W (100 V line, 70 V line)

Rated Impedance

8 Ω

100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 k Ω (3 W), 10 kΩ (1 W)

70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 k Ω (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)

Sensitivity

87 dB (1W, 1 m) at installation in 1/2 free sound field

Frequency Response

85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field

Directivity Angle

Horizontal: 100 °, Vertical: 100 °

Speaker Component

9 cm Full-range PPcone-type

Input Terminal

Push-in terminal

Operating Temperature

-10 °C to +50 °C

Installation Environment

Indoor installation

Finish

Enclosure: HI PS, white (RAL 9011 equivalent), paint

Grille: Aluminum, white (RAL 9011 equivalent), paint

Speaker bracket: Die-cast aluminum, white (RAL 9011 equivalent), paint
Base bracket: Steel plate, t4, white (RAL 9011 equivalent), paint

Base bracket cover: HIPS, white (RAL 9011 equivalent)

Dimensions

130 (W) X 221 (H) X 132 (D) mm

Weight

1.7 kg

Accessory

Speaker bracket ···1, Base bracket ···1, Base bracket cover --·1, Bracket fixing screw ···1 set

Option

Adapter plate: HY-F03W

Speaker stand: ST-34B Note: K&M 19780 or K&M 19610 is required.
