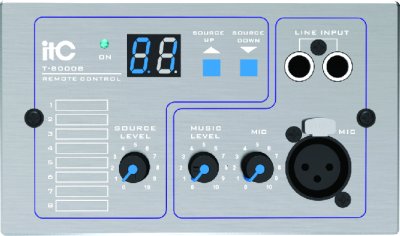

ITC T-8000B

T-8000B (Grey & Aluminum) / T-8000BW (White & ABS)

Remote Control with Audio Input Module

Features：

• The T-8000B remote control with audio input module is connected with T-8000 through universal industrial standard CAT 5 for each eight zone's volume adjustment or remote line and microphone input at a remote and different location from the control center.
• Two different options: T-8000B of aluminum material in grey color and T-8000BW of ABS material in white color.
• Each controller provides eight RJ45 ports for the remote control with audio input module.
• The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
• This module family also has simpler functional module of T-8000C and T-8000D.
• Remote line by dual RCA and mic by XLR inputs with gain controls.
• Zone LED indicator with up/down buttons.
• Volume control is provided for overall output level control.
• DC 24V power supply from controller, low power consumption 5W.
• Extra DC 24V power supply is needed when communication distance is more than 50 meters.
• Analog to digital conversion working principle to adjust controller's volume.
• Metal mounting box is supplied.

Specifications：
