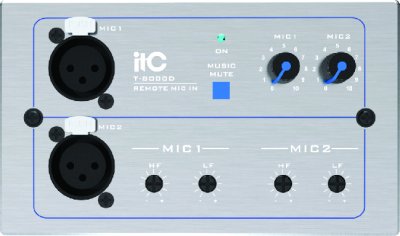

ITC T-8000D

• The T-8000D remote microphone input module is connected with T-8000 through universal industrial standard CAT 5 where a remote location announcement is needed.
• Two different options: T-8000D of aluminum material in grey color and T-8000DW of ABS material in white color.
• Each controller provides eight RJ45 ports for the remote module.
• The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
• The remote module family also has T-8000B and T-8000C.
• Two remote mic by XLR inputs with volume control and bass, treble tone controls.
• A paging priority override music button is provided when a remote paging is needed.
• DC 24V power supply from controller, low power consumption 5W.
• Extra DC 24V power supply is needed when communication distance is more than 50 meters.
• Analog to digital conversion working principle to adjust controller's volume.
• Metal mounting box is supplied.

Specifications:
