ITC T-6702A

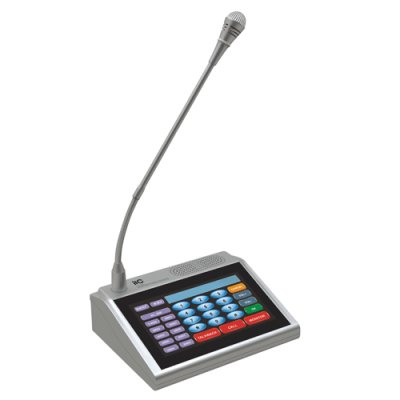

ITC T-6702A Desktop Paging Microphone

with 7 inch Touch Screen


Description:

The T-6702A is an ideal choice for the call center, alarm center, office, leading office, conference room etc. It can one-way paging for the different terminals.( To point, single zone or whole zones ) Intercom and monitor.

Features:

• Desktop type design, with 7 inch resistance touch screen equipped with 800 x 480 graphic dot-matrix K600 and 65K color shows, clear screen and sensitive touch. It enters into standby, If no any operation, it will enter into sleep and low power consumption status. User-friendly operation screen.

• With number keys, function key interface. Support one key call single zone and all zones, support direct operation or intercom any terminal. Support direct operation monitor according to actual environment, and max monitor distance upto 5 meters.

• Embedded PC technology, built-in DSP Audio processing technology design and high speed industrial chip to ensure start time less than 1 second.

• Built-in single network hardware audio decoding module, support TCP/IP, UDP, IGMP (Multicast) protocol, transmit 16-bit audio signal as same as CD quality through network transmission.

• Support DHCP, compatible routers, switches, Bridges, Modem, Internet, 2G, 3G, 4G, arbitrary, multicast, etc. Support remote on demand function, support custom audio priority level 1000's sound control (support multipath signal amplification, mixing and tertiary priority control, tone).

• Support two-way intercom function, with network echo cancellation module. Network delay is less than 300 ms. At the same time the network echo and noise can be completely inhibited.

• Support for help signal bell, the splash screen tips, a key to accept help, intercom function, can also support hands-free calls and receive broadcast at the same time, realize the quick links.

• Support multiple call strategy, including call waiting, call forwarding, unanswered reminder.

• Support automatic answer, answer by operation, support customize answering reminder tone.

• Support customized the time transfer time, no one answer, call waiting time.

• Built-in meeting schedule management functions, support meeting discuss mode.

• Built-in 2w all frequency hi-fi speaker to support two-way conversation and network monitor.

• A dia. 3.5 headphone socket and a dia. 3.5 MIC input socket, can be matched with headsets and portable microphone in the market.

• One channel audio line output, external power amplifier. one channel audio line input can provide multi-audio supply.

• One short circuit of alarm trigger, cascade outside alarm equipment. One channel short circuit input can be used as trigger voice reminder (or alarm).

• Strong directional microphones to ensure that clear communication without interference.

• Serial port IP address for download of PC to used for modify the network IP address decode module.

• Easy to expand, without being limited by the geographical position. No need for increase management equipment of engine room, simple installation for with network construction design concept.
