ITC T-67350

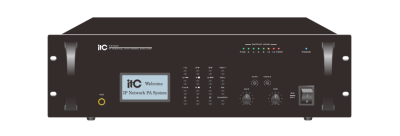

ITC T-67350 IP Network Adapter

(Rack design & Build-in Amplifier)

T-67350 (350W, 3U)

Description

Widely installed in weak-current rooms or branch control room for public address, build-in amplifier, widely used for hall, corridor and outdoor public address.

Features

• Standard 19-inch rack design, black aluminum panel, human-based handle, exquisite and high-class design.

• 3.4-inch screen, 16 industrial-grade metal buttons, super anti-jamming performance, with stable infrared operation.

• Adopt embedded computer technology and DSP audio processing technology; high-speed chip cut the start-up time less than 1 second.

• Built-in single network hardware audio decoding module, support TCP/IP, UDP, IGMP (Multicast) protocol, transmit 16-bit audio signal as same as CD quality through network transmission.

• Built-in Hi-Fi analog amplifier,350W, 4-16Ω output and 70V/100V constant resistance output.

• One AUX and one MIC input, with independent volume control, treble and bass control, support paging without network.

• One EMC input for emergency audio signal input, with the highest priority.

• One AUX output, connect with external amplifier, industrial terminals with using screws for fixation to ensure connection reliability.

• One three-wire volume with relay input, compatible with three-wire and four-wire wire fire cut, without 24V power supply, no limit on volume control quantity.

• Built-in intelligent power management, automatically cut off the amplifier power when no signal input , power amplifier, automatically turn on when there is audio signal input, preset the program to get this function.

• Support mute level reduction preset, could preset background accompaniment.

• Support remote broadcast on-demand. Support up to 1000 grades user-defined audio priority mute control.

• Built-in audio processing to support multi-channel signal amplification and mixing, support three kinds of audio priority management.

• Support DHCP, compatible router, switcher,, bridges gateway, Modem, Internet, 2G, 3G, 4G, multicast, unicast and so on.

• Support at least three kinds of high security authorization, the safety factor is higher than the Web remote configuration.

• Authorized the operation allowance in control center, to configure the user name and password.

• IOS menu management.

• Support digital audio playback breakpoint play, to ensure the synchronization play.

• Voice prompt when new configuration Sign-in.

• Support PSTN phone broadcast, support SMS voice broadcast.

• Support mobile WIFI broadcasting on-demand, wireless remote broadcasting controller on-demand.

• Support serial port expansion on-demand, remote on-demand, program selection, volume control.

• Support ESD protection, built-in anti-thunder processing circuit.

• Optional redundant 24V dual power supply.

• Status Indicator display, include level indicator, protect indicator, standby indication.

• One channel to download IP address serial port from PC, to modify IP address of decoding module.

• Digital, easy expansion, no geographical restriction, no additional management equipment, without cables construction , easy installation.

• Standby power less than 3W, Green and meet international standard.

Specifications
