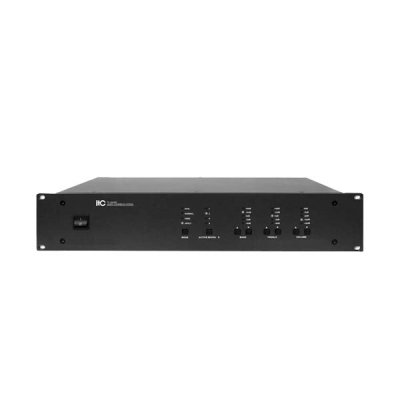

ITC TS-0604M

ITC TS-0604M Highly Intergrated Digital

Conference System

Feature:

• Adjustable Volume (0dB/-3dB/-5 dB/-10 dB/-15 dB/OFF); Bass(+6dB/+2 dB/0dB/-2dB-6dB); Treble(+6 dB/+2 dB/0 dB/-2dB/-6dB).

• Four conference modes: FIFO (first-in first-out mode), NORMAL (normal mode), FREE (free mode), APPLY (apply to speak).

• Support limiting the number of spokesmen: the number of speaking units can be set to 1, 2, 4 and 6; the chairman unit is not limited.

• Support super extension function: one controller can connect 128 units, and up to 4096 units can be connected through extension.

• Hand in hand cable connection mode, convenient for installation and maintenance.

• Adopt digital equalization module and noise reduction module for audio processing, ensure clear and bright sound; designed with two audio inputs and four audio outputs for connecting peripheral devices.

• Equipped with 2 original sound output channels, connected to PA amplifier for sound amplification, and connected to a deck for recording.

• Equipped with 2 recording output channels, connected to equipment for recording.

• Support voting and data management function, used with PC control software, other ITC conference systems, central control system and other devices to achieve the modern high-tech conference.

• Used with telephone coupler to achieve teleconference.

• Used with video camera tracking system for automatic tracking function.

• It has passed the 3500V high voltage test.

• Metal housing and internal circuit are well connected to the ground wire to ensure the 8000V anti-static capability.

• The controller can be installed in the 19-inch standard rack, convenient for installation and maintenance.

Specifications:
