-20%

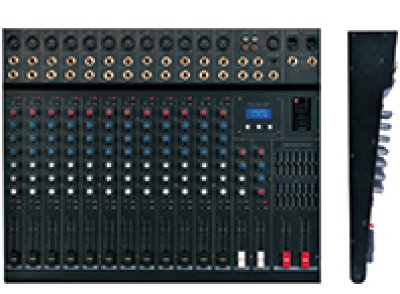

ITC TS-8P
SKU : ITC TS-8P
฿30,000
฿24,000
จำนวน
คำอธิบายสินค้าแบบย่อ
พาวเวอร์มิกเซอร์ (Powered Mixer) ขนาด 8 แชนเนล หมาะสำหรับงานอีเวนต์เคลื่อนย้ายสะดวก, ห้องประชุมขนาดเล็ก-กลาง, ร้านอาหาร
แบรนด์: ITC
รายการโปรด
เปรียบเทียบ
ITC TS-8P
ดาวน์โหลด
ITC 8 Channel Mixer With DSP
Features:
2 optional DSP effect modules, one is 21 effects model, can adjust the time. The other has adjustable and fixed parameters.
Intelligent display, accurate, convenient.
+48V phantom power.
SMT.
Built-in 24-bit DSP effector.
3 balanced inputs, double 7 balanced outputs.
2 main outputs, 1 monitor output, 1 effect sending.
LED DJ light.
External power, low noise.
Specifications:
| Model | TS-8P |
| Mono Input Channel | 8 channels |
| Stereo Input Channel | 2 channels (selectable. If selected, mono channels will be lessened by 4 channels) |
| Mono Insert Channel | 8 channels |
| Phantom Power for MIC | +48V |
| Output Channel | 2 main output channels; 2 REC output channels; 1 effects output channel; 1 monitor output channel; 1 stereophone output channel |
| Frequency Response | 20Hz~20KHz ± 1dB |
| Mono MIC to Main Output Max Gain | 50dB ± 3dB |
| Mono Line to Main Output Max Gain | 30dB ± 3dB |
| Stereo Line to Main Output Max Gain | N.A. |
| Overhearing (Crosstalk) | <-80dB ± 1.5dB @1KHz |
| S / NR | 78dB @ 0dB |
| Max Output Level to Main Output Channel | 22dB ± 1.5dB |
| Max unbalance Group Output / Main Output Channel | 16dB ± 1.5dB, Without Group |
| REC Max Unbalance Output | 16dB ± 1.5dB |
| Monitor Max Unbalance Output | 16dB ± 1.5dB |
| Effects Max Unbalance Output | 16dB ± 1.5dB |
| Phone Output | 12dB ± 1.5dB @ 1KHz 32 Ω |
| Gain Inequality | ≤2dB |
| THD | ≤0.02% @ 0dB 1KHz |
| Mono Channel EQ | |
| High / Mid / Low | 12KHz, 1.8KHz, 80Hz |
| Frequency Swing & Gain | Frequency swing <8%, Gain: ± 15dB |
| Stereo EQ | |
| High / Mid / Low | 12KHz, 1.8KHz, 80Hz |
| Frequency Swing & Gain | Frequency swing <8%, Gain: ± 15dB |
| 7 Main Output to GEQ | |
| Center Frequency of EQ | 63Hz, 160Hz, 400Hz, 1KHz, 2.5KHz, 6.3KHz, 16KHz |
| Frequency Swing & Gain | ± 12dB inaccuracy 2dB, Frequency swing ≤8% |
| Effector | 2 DSP of 21 different Effects: HALL, ROOM, PLATE, AMBIENT, GATED, REVERB, VOICE, DEL & REV, ECHO 40, ECHO 50, DELAY, CHORUS, CHO&DEL, CHO & REV, FLANGER, FLA & DEL, FLA & REV, TREMOLO, TRE&REV, WAH WAH, WAH & REV |
| Clipping Indicator Light | Indicator 3dB earlier than clipping level |
| Group & 12 Main Outputs Levels Indicator LED | +9dB, +6dB, +3dB, 0dB, -2dB, -4dB, -6dB, -9dB, -12dB, -16dB, -18dB, -21dB |
| Power Supply & Power Consumption | AC 120V or 220V; 50-60Hz; <70W |
| Power of Amplifier | N.A. |
| The Dimension of External Power Supply | 129 x 90 x 77mm |
| Product Dimension (W×D×H) | 387.5 x 389.7 x 80.3mm |
| Net Weight | 6kg |
| Shipping Dimension (W×D×H) | 555 x 485 x 180mm / 0.0485m³ |
| Gross Weight | 10.8kg |
*เช็ค Stock และราคากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
เช็ค Stock และราคากับเจ้าหน้าที่ : Audiovideomed Audiovideomed
