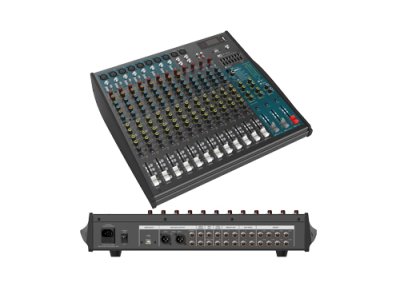

ITC TS-16PFX-4
SKU : ITC TS-16PFX-4
จำนวน
คำอธิบายสินค้าแบบย่อ
มิกเซอร์ 16 แชนแนล พร้อม DSP และ 4 กลุ่ม
ITC TS-16PFX-4
16 Channel Mixer with DSP with 4 group
Feature:
Large professional mixer, ultra-low noise discrete microphone preamplifier and +48V phantom power, powerful functions and mellifluous sound quality.
10 channels of Mic input interface are compatible with 8 line input interfaces; microphone input interface supports 48V phantom power.
2 sets of stereo inputs and 4 channels of RCA inputs can be connected to stereo devices.
Provide 2 sets of stereo main outputs, 4 marshalling outputs, 4 auxiliary outputs, 1 set of stereo monitoring output, 1 earphone monitoring output, 2 effect outputs.
Provide 1 set of main mixing breakpoint insertion, 8 breakpoint insertion, and can be connected to additional processors (compressor, equalizer, limiter, etc.).
15 high-precision carbon film faders with 60mm stroke.
Built-in MP3 player supports external U disk playback/recording through the USB interface.
Built-in USB sound card can connect to computer for music playback and sound recording.
Built-in 24-bit DSP audio processor can provide 100 preset effects.
A USB power supply interface can be connected to USB light.
Support 7-band graphic equalization fader adjustment.
It has a dot matrix LCD screen with a resolution of 128×64, and users can view multimedia information such as Bluetooth, MP3, etc. through the display screen.
Specification:
| Model | TS-16PFX-4 |
| Mic input | 10 channels (10 XLR) |
| Line input | 8 single plug mono/stereo automatic switching hybrid interfaces |
| Stereo input | 2 sets (4 channels of mono), 4 channels of RCA input |
| Output channel | 2 stereo outputs, 4 group outputs, 4 auxiliary outputs, 1 headphone monitor output, 1 interface dual effect output, 1 control room output |
| INSERT | 1 set of main mixing breakpoint insertion, 8 breakpoint insertion |
| USB interface | USB flash drive playback and recording |
| Wireless connection | Built-in Bluetooth wireless transceiver, can connect to mobile phone to play music |
| Audio processor | 24-bit DSP audio processor (including vocal, small house, hall, echo, echo + reverb, plate, chorus GTR, rotating GTR, vibrato GTR type), 100 preset effects |
| USB sound card port | Support computer recording/playback, playback via CH13/14 channel |
| Phantom power | Each channel of CH1-CH8 has 48V phantom switch independent control |
| Frequency response | 20Hz-20kHz, ±2dB |
| Distortion | <0.03% at +0dB, 22Hz-22KHz A-weighted |
| Sensitivity | +20dB~-30dB |
| SNR | <-100dBr A-weighted |
| Mono equalization | High frequency: +/-15dB @12KHz; medium frequency: +/-15dB @100Hz-8KHz; low frequency: +/-15dB @80KHz |
| Stereo equalization | High frequency: +/-15dB @12KHz; medium frequency: +/-15dB @3KHz or +/-15dB @500Hz; low frequency: +/-15dB @80KHz |
| Main mixing crosstalk | <-80dB @0dB 20Hz-22KHz A-weighted, main output: 0dB, other channels: minimum |
| Level meter | 2x12-dot pitch LED level indicator |
| Supply voltage | AC 100-240V 50/60Hz |
| Rated power | 30W |
| Dimension | Product size (L×W×H) 491.5×441.9×97.6mm; Display screen size 41.7×20.36mm |
| Weight | 7.5Kg |
