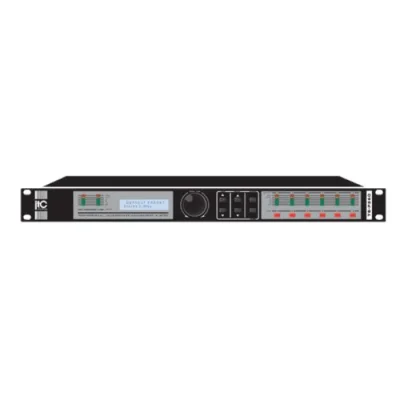

ITC TS-P240
SKU : ITC TS-P240
จำนวน
คำอธิบายสินค้าแบบย่อ
เครื่องขยายเสียงดิจิทัลประสิทธิภาพสูง (Digital Power Amplifier Class-D) ขนาดกำลังขับ 240 วัตต์ ออกแบบมาสำหรับการใช้งานในระบบเสียงประกาศ
ITC TS-P240 Digital Power Amplifier
Description:
Digital signal processor designed for professional audio systems, offering advanced routing, equalization, delay, and crossover control with high sampling frequency and 32-bit DSP processing.
Features:
96KHz sample frequency 32-bit DSP Processor, 24-bit A/D and D/A switching.
Available in various model configurations such as 2 inputs & 4 outputs, 2 inputs & 6 outputs, 2 inputs & 8 outputs, 3 inputs & 6 outputs, 4 inputs & 6 outputs, 4 inputs & 8 outputs, with high & low frequency reaching 20Hz~20KHz.
6 independent parametric EQs in every input and output, gain adjustment range up to ±20dB, with Lo-shelf and Hi-shelf harmonic options.
Independent delay, phase control, and mute settings in every input and output; maximum delay up to 1000ms (units: ms, m, ft).
Input channel features adjustable noise gate.
Output channel supports gain control, voltage limitation, input channel signal selection, and data copying between channels for gang control.
Configurable via front panel function buttons and toggle switches or controlled via user-friendly PC software.
Panel control locking function via SYSTEM button to prevent accidental modifications.
Multiple connectivity options with PC via USB, WiFi, RS485, and Internet (including remote control via serial-to-WiFi controller).
Supports central controller integration for channel modification and invocation via RS-485.
Local function partitioning for data security.
Capable of storing up to 30 user programs in a single device.
Specifications:
| Model | TS-P240 |
| Input Channel & Socket | 2 channel XLR female |
| Output Channel & Socket | 4 channel XLR female |
| Input Impedance | 20K Ω balanced |
| Output Impedance | 100K Ω balanced |
| PC Interface | Front Panel: 1 USB, Rear Panel: 2 RS485 (RJ-45) |
| CMRR | > 70dB (1KHz) |
| Input Range | ≤ +25dBu |
| Frequency Response | 20Hz-20KHz (-0.5dB) |
| SNR | > 110dB |
| THD | < 0.01% (OUTPUT = 0dBu / 1KHz) |
| Channel Separation | > 80dB (1KHz) |
| Input Mute | Separate mute control on each channel |
| Input Delay | 0 - 1000ms (Step: <10ms is 21μs; 10ms-20ms is 84μs; >20ms is 0.5ms) |
| Input Phase | Inverting (+) / Reverse (-) |
| Input Equalization | 6 parametric equalizers per input channel (Center freq: 20Hz-20KHz, 239 frequency points, Bandwidth: 0.05oct-3oct, Gain: -20dB to +20dB) |
| Output Mute | Separate mute control on each channel |
| Output Selection | Individually select different input channels |
| Output Volume | -80dB to +12dB (Step: 0.1dB) |
| Output Delay | 0 - 1000ms (Step: <10ms is 21μs; 10ms-20ms is 84μs; >20ms is 0.5ms) |
| Output Phase | Inverting (+) / Reverse (-) |
| Frequency Divider Setting | LPF/HPF per output channel; Filter Type: Linkwitz-Riley/Bessel; Turning point: 20Hz-20KHz; Slope: 12/18/24/30/36/42/48 dB/oct |
| Limiter Setting | Threshold: -40dBu to +20dBu; Start time: 0.3ms-200ms; Release time: 50ms-5000ms |
| Output Equalization | 6 parametric equalizers per output channel (Parameter/Lo-Shelf/Hi-Shelf) |
| Processor | 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion |
| Display | 2 x 24 LCD menu display, 6-segment LED input/output digital level meter |
| Power Consumption | ≤ 25W |
| Power Supply | AC 110V/220V 50/60Hz |
| Dimension (W × D × H) | 482 × 190 × 44 mm |
| Net Weight | 3.6 Kg |
| Transport Dimensions (W × D × H) | 562 × 362 × 98 mm |
