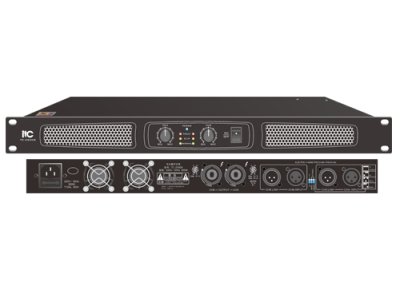

ITC TC-2500B
SKU : ITC TC-2500B
จำนวน
คำอธิบายสินค้าแบบย่อ
เพาเวอร์แอมป์ระดับมืออาชีพ 2 แชนแนล ดีไซน์ตู้แร็คขนาดมาตรฐาน 1U กะทัดรัด น้ำหนักเบาเพียง 4.6 กก.
ITC TC-2350B
2 Channel Professional Amplifier
Description:
The TC-2350B is a 2-channel professional digital power amplifier featuring a compact 1U design, high-efficiency Class D circuitry, and advanced switching power supply technology, delivering reliable high-performance audio amplification for professional sound systems.
Features:
1U cabinet design, small in size and light in weight.
Adopt the latest class D digital amplifier design, with low distortion and high efficiency.
Adopt switched power supply technology, with high efficiency, to effectively suppress the harmonics of the power supply, meeting the EU green power supply standard.
Adopt smart peak clipper to control the power module and speaker system to work in a safe range.
Designed with standard XLR input interface and LINK output interface, convenient for different user needs.
Support soft start to prevent absorbing large current from the power grid during startup and interfering with other electrical equipment.
Smart control forced heat dissipation design, low fan noise and high heat dissipation efficiency.
Support overvoltage protection, undervoltage protection, overcurrent protection, DC protection, output short circuit protection, temperature control fan and so on.
Specifications:
| Model | TC-2350B |
| Output Power | Stereo @ 8Ω: 350W × 2; Stereo @ 4Ω: 600W × 2 |
| Input Sensitivity | 2.2dBu (1V) |
| Input Impedance | 10K Ω |
| Frequency Response (@1W Power) | 20Hz-20KHz / ±1dB @ 8Ω |
| THD+N (@1/8 power) | ≤ 0.01% |
| Isolation (@1KHz) | ≥ 80dB |
| Damping Coefficient (@1KHz) | ≥ 200 @ 8 Ω |
| SNR (A-weighted) | ≥ 93dB |
| Input Voltage | AC 220V / 50Hz |
| Overall Power Consumption | 200W |
| Dimension (L × W × H) | 484 × 206 × 44 mm |
| Weight | 3.8 Kg |
*เช็ค Stock และราคากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
