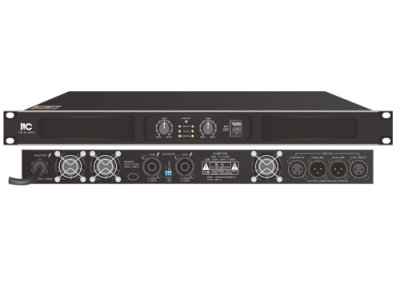

ITC TC-21200
SKU : ITC TC-21200
จำนวน
คำอธิบายสินค้าแบบย่อ
เพาเวอร์แอมป์ดิจิทัลระดับมืออาชีพ 2 แชนแนล
ITC TC-21200
Professional Amplifier
Description:
This series of products is the latest generation of high-power professional digital power amplifiers, featuring high efficiency, stability and excellent sound quality. It is specially designed for large-scale sound reinforcement, performances in multi-function halls, etc.
Features:
Dual-channel high-power professional digital power amplifier.
Equipped with DC, short circuit, overload, and overheat protection.
Adopt variable oscillation modulation technology, multiple feedback control technology and innovative output power control technology to achieve more than 95% ultra-high efficiency and excellent stability.
Support sensitivity 1V/2V selectable switching, XLR balanced input / XLR balanced LINK output, and SPEAKON audio socket output.
Featuring signal, power, and temperature limit functions.
Supports three switchable modes: MONO / STEREO / BRIDGE.
With a temperature-controlled fan that runs upon startup and accelerates as temperature increases, reaching full speed at about 60°C.
Front panel indicators include signal (green), clipping (orange), protection (red), and power (blue).
Supports regular loads of 8 ohms, 4 ohms, and a minimum of 2 ohms.
Specifications:
| Output Power (1kHz / THD ≤ 1%) | Continuous Power | Maximum Power* |
|---|---|---|
| Stereo 8Ω × 2 | 1200W × 2 | 2000W × 2 |
| Stereo 4Ω × 2 | 1900W × 2 | 3400W × 2 |
| Stereo 2Ω × 2 | 3200W × 2 | 4800W × 2 |
| Bridge 16Ω | 2400W | 4000W |
| Bridge 8Ω | 3800W | 6800W |
| Bridge 4Ω | 6400W | 11600W |
| Connecting Socket | XLR interface | |
| Voltage Gain (@1kHz) | 41dB | |
| Input Sensitivity | 2.2dBu (1V), 8.2dBu (2V) | |
| Input Impedance | 10K Ω unbalanced, 20K Ω balanced | |
| Frequency Response (@1W power) | 20Hz-20KHz / ±1dB | |
| THD+N (@1/8 power) | ≤ 0.01% | |
| SNR (A-weighted) | ≥ 105dB | |
| Damping Factor (@1kHz) | ≥ 200 @ 8 Ω | |
| Crosstalk (@1kHz) | ≥ 85dB | |
| Protection Method | Overvoltage, undervoltage, overcurrent, DC, short circuit protection | |
| Indicator Light | Power, Protection, Signal, Distortion | |
| Cooling Method | Fan cooling | |
| Power Supply | AC 220V / 50Hz | |
| Overall Power Consumption | 1100W | |
| Dimension (L × W × H) | 483 × 370 × 44 mm | |
| Weight | 8 Kg | |
*This power is measured using 20ms pulse and 1kHz sine wave at 1% total harmonic distortion. Overall power consumption is measured under 1kHz sine wave rated load 1/8 power conditions.
*เช็ค Stock และราคากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
เช็ค Stock และราคากับเจ้าหน้าที่ : Audiovideomed Audiovideomed
