ATEN VE7833A

ATEN VE7831A / VE7832A / VE7833A / VE7834A / VE7835A

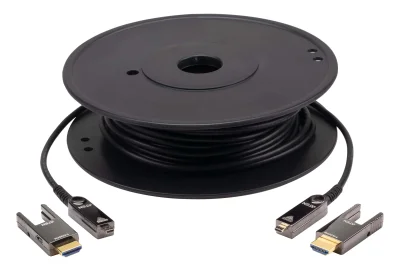

10M True 4K HDMI Active Optical Cable (True 4K@10m)

Description:

The VE7831A / VE7832A / VE7833A / VE7834A / VE7835A optical cables utilize AOC technology that enable conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 10, 20, 30, 60, and 100 m with full support of True 4K resolutions.

They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby TrueHD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions. This cable series comes with an HDMI Ethernet Channel (HEC) and Audio Return Channel (ARC) for enhanced connectivity and convenience.

Engineered to meet the latest trend of integrator-friendly design, these optical cables feature pluggable gender and gold-plated connectors. Therefore, they are ideal solutions for extending the reach of digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

Features:

• HDMI (3D, Deep Color, 4K, HDR, HEC, ARC); HDCP 2.2 compliant.

• Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 100 m.

• Supports HDR, HDMI Ethernet Channel (HEC), and Audio Return Channel (ARC).

• Reduced EMI and RFI for lower noise interference.

• Supports multi-audio channels: Dolby TrueHD and DTS-HD Master Audio.

• Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg).

• Additional power source is available via Micro USB cable for better compatibility.

• Gold-plated connectors and pluggable gender design for easy installation and reliable transmissions.

• Compliant with International Flame Retardant Standards: UL CMP-OF (Plenum).

Specifications:
