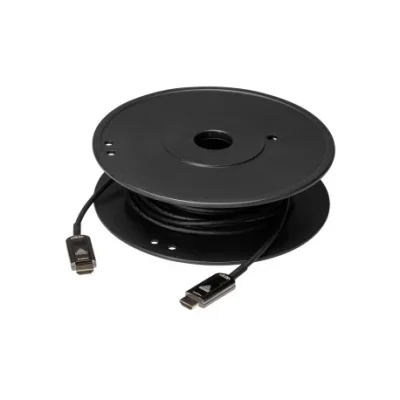

ATEN VE781010

ATEN VE781010 / VE781020 / VE781030

True 4K HDMI Active Optical Cable Series

Description:

The VE781010 / VE781020 / VE781030 True 4K HDMI Active Optical Cables utilize AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 10, 20, and 30 m with full support of True 4K resolutions.

They're fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby TrueHD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions.

These optical cables are ideal solutions for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

Features:

• Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4).

• HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant.

• Extends True 4K signals up to 30 m.

• Reduced EMI and RFI for lower noise interference, guaranteeing reliable signal transmission.

• High data transfer rate of 18 Gbps (6 Gbps per channel).

• Supports multi-audio channel - Dolby TrueHD and DTS-HD Master Audio.

• A range of cable lengths, available in 10, 20, and 30 m.

• Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg).

• Plug-and-play operation with no external power required.

Specifications:
