DATAVIDEO CAP-1 3G-SDI to USB 3.0 Capture
DATAVIDEO CAP-1
SDI to USB 3.0 Capture Box
USB 3.0 Capture รองรับสัญญาณขาเข้าแบบ 3G-SDI ความละเอียดสูงสุด 1920x1080p 60Hz
*เช็ค Stock และราคากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง

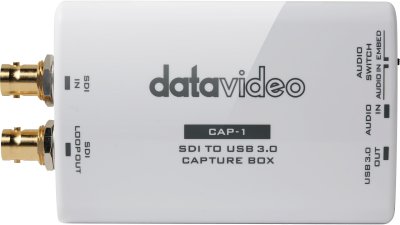

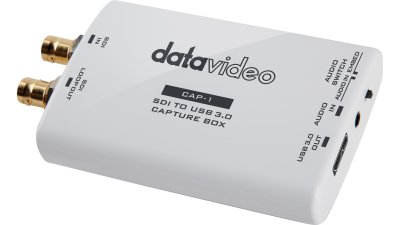

CAP-1 SDI to USB 3.0 Capture Box
CAP-1 SDI to USB 3.0 Capture Box is an SDI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features stereo line in external audio, which can be switched as SDI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.
SDI to USB 3.0 Capture Box

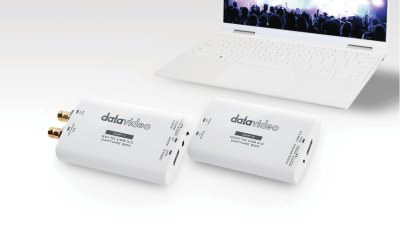

This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing.
The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and its plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.

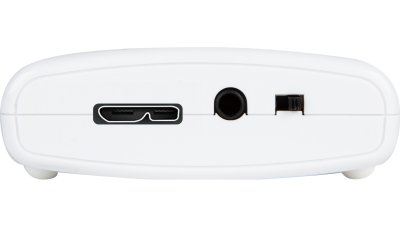

USB 3.0 Interface
No external power is needed. Power source from USB connection.
Plug-and-Play
Support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform
Compatible with various operating systems
- Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
- Linux: VLC, OBS
- Mac OS X: OBS, Quicktime player, VLC, Facetime
Stereo line in external audio

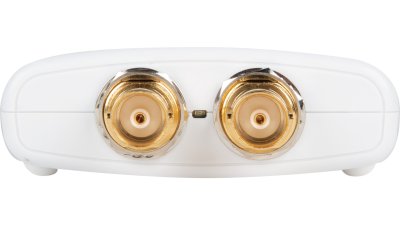

SDI Loop-out for monitoring or recording the video source.
Switched as SDI embedded audio or external Mini-Jack audio.
Diagram
Packet content
1 x CAP-1
1 x Thank You Card
1 x USB 3.0 Cable
