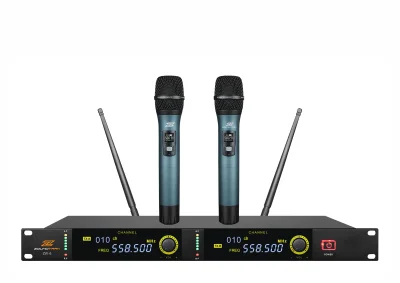

Zoundtrak ZW 6

Dual Channel Wireless Microphone  2  Antenna

System Parameter

-  Frequency Range  :  694.5 - 702.7 MHz

-  Signal to Noise Ratio  :  >100 dB

-  Stray Radiation  :  <-60 dBc

-  Working Distance  :  50 - 60 Meters

-  Frequency Response  :  20 Hz - 18 KHz

-  Audio Distortion  :  <0.5%

-  Working Mode  :  <100 mA

-  Frequency Stability  :  +0.005

Receiver Parameter

-  Oscillation Mode  :  KT Module

-  Receiving Sensitivity  :  5 dBu/V

-  Reference Sensitivity  :  -90 dBm

-  Illusion Interference Ratio  :  >80 dB

-  Power Supply Mode  :  DC 15 - 17 Volt

-  Antenna Access  :  BNC / 50 Ohms

-  Channel Interference Ratio  :  >80 dB

-  Signal to Noise Ratio  :  >100 dB

-  Power Consumption  :  2 Watt

Transmitter Parameter

-  Output Power  :  5 mW - 10 mW

-  Directivity  :  Cardioid pickup pattern

-  Max. Modulation  :  20 KHz

-  Power Supply  :  AA x 2 Pcs. 1.5 Alkaline Batteries

-  Oscillation Mode  :  KT Module

-  Transmitter Type  :  Dynamic Microphone

-  Pipe Body Material  :  Zinc Aluminum Alloy

-  Battery Life Time  :  8 - 15 Hours
