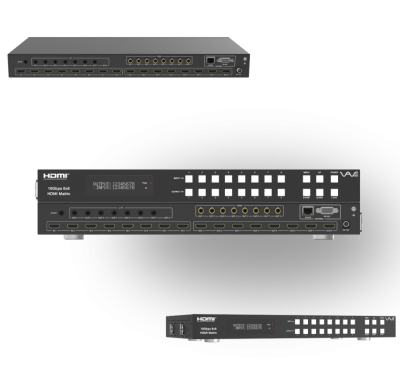

VAVE SW88

SW88

The 18Gbps 8×8 HDMI Matrix enables the distribution of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high-resolution digital audio from 8 HDMI sources to 8 HDMI displays. It supports audio de-embedding to both analog and coaxial outputs from the 8 HDMI output ports. When HDMI output ARC is enabled, ARC audio from HDMI display devices is extracted to the coaxial audio output. Each HDMI output features independent 4K2K to 1080P downscaling. The matrix can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Feature :

• HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
• Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
• Support 18Gbps video bandwidth
• Dolby Vision, HDR10+ and HLG are supported.
• Support 4K->1080P Down Scaler for each output port
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
• Audio de-embedded is supported via analog and coax ports
• ARC, CEC and smart EDID management are supported
• 1U rack mounted design with front panel OLED display
• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
