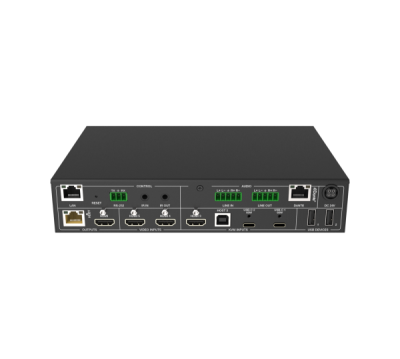

VAVE SW-51-E70

This 5×1 seamless presentation switch includes 3 HDMI inputs, 2 USB-C inputs (with DP Alt mode, USB 2.0, 100M Ethernet, and 60W charging), 1 HDMI output, and 1 HDBT mirrored output. The HDBT output supports standard PoE power and can extend uncompressed signals up to 230ft/70m at 4K@30Hz 4:4:4 or 131ft/40m at 4K@60Hz 4:4:4 over a single CAT6A (F/FTP) cable. The switch offers flexible display options, including single screen or various multiview modes (Single/PIP/PBP/Triple/Quad). It supports USB 2.0 local KVM switching and Hub/HDBT USB pass-through (from TX to RX), as well as bi-directional RS-232 and IR control signal pass-through. Additionally, it features 1 analog audio input, 1 analog audio output, and Dante 2×2 audio input and output. The built-in 3×3 audio matrix includes independent audio EQ, volume, and delay adjustments

Feature :

• HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant
• Support 18Gbps video bandwidth
• Support video resolution up to 4K@60Hz 4:4:4
• Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable
• Uncompressed 1080P&4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP) cable
• Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad
• Support 5×1 seamless switching (single screen) and fast switching (multiview) function
• Input: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
• Output: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante 2ch
• HDMI and HDBaseT (POE) outputs (Mirrored)
• Dante 2×2 audio input and output
• USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet and 60W charging
• Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
• Signal input supports manual switching and automatic switching modes
• Support analog/Dante audio embedding, analog/Dante audio de-embedding output
• CEC/RS-232 control external devices ON/OFF
• Advanced EDID management
• Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
• Support standard POE power supply (TX_PSE, RX_PD)
