VAVE SW44-150EX

SKU : VAVE SW44-150EX

฿50,500

จำนวน

คำอธิบายสินค้าแบบย่อ

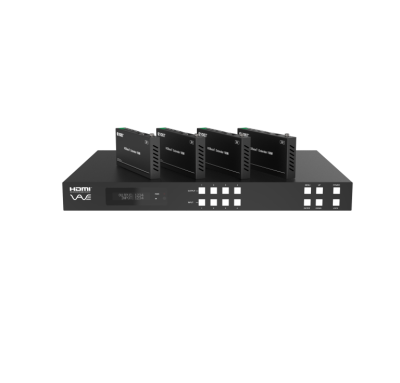

4×4 HDMI 4K 18 Gbps Matrix with Extenders

รายการโปรด
รายละเอียดสินค้า
สเปค
ดาวน์โหลด

The 18Gbps 4×4 HDBaseT Matrix allows you to connect four HDMI sources to eight displays. It features four HDMI outputs, each mirrored to provide simultaneous CAT-Cable outputs. The HDBaseT output can extend video transmission up to 492ft / 150m using a single Cat 5e/6/7 cable, with resolutions up to 4K2K@60Hz 4:4:4. Audio de-embedding is supported in both analog and coaxial formats. Each HDMI output supports independent downscaling from 4K2K to 1080P. The matrix supports IR control, with one-to-one control at the Matrix end and IR signals following the HDMI video channel at the HDBaseT receiver end. It includes an intuitive front panel with an OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Feature :

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
  • 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
  • HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
  • Support 18Gbps lossless compressed HDBaseT signal transmission
  • Support 4K->1080P Down Scaler for each output port
  • HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
  • HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HDMaster Audio)
  • Support IR matrix
  • Audio de-embedded is supported via analog and coax ports
  • Advanced EDID management and CEC control are supported
  • 24V POC on all HDBaseT ports
  • 1U rack mounted design with front panel OLED display
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

*เช็ค Stock และราคากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
