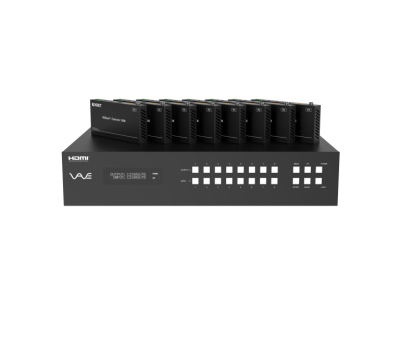

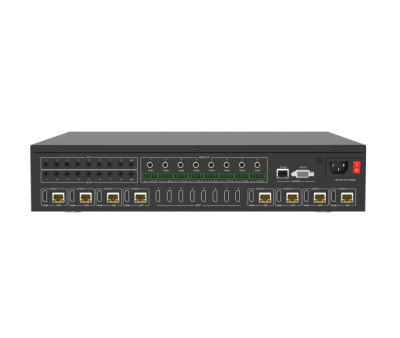

VAVE SW88-150EX

The 18Gbps 8×8 HDBaseT (150M) Matrix allows connection of 8 HDMI sources to 16 displays. It features 8 HDMI outputs, each mirrored with a simultaneous CAT-Cable output. The HDBaseT output extends video transmission up to 492ft / 150m using a single Cat 5e/6/7 cable, supporting video resolutions up to 4K2K@60Hz 4:4:4. The matrix supports audio de-embedding to analog and coaxial outputs. Each HDMI output independently supports downscaling from 4K2K to 1080P. It includes IR matrix support, with IR signals mapped one-to-one at the Matrix end and following the HDMI video channel at the HDBaseT Receiver end. The matrix features an intuitive front panel with an OLED screen and can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Feature :

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
• 8 HDMI inputs, 8 HDMI & HDBaseT mirrored outputs
• HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
• Support 18Gbps lossless compressed HDBaseT signal transmission
• Support 4K->1080P Down Scaler for each output port
• HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
• HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
• Support IR matrix
• Audio de-embedded is supported via analog and coax ports
• Advanced EDID management and CEC control are supported
• 24V POC on all HDBaseT ports
• 2U rack mounted design with front panel OLED display
• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
